After a discussion with a local mechanic, we found that the 1975 wiring diagram matched my sept.1973 car, with the exeption of an overdrive module(mine don't have one).
The smith's module, I found this wonder of engineering last night. it connects to the start interlock relay, all the seats,seat belts, the light and seatbelt light
here is a link pictures and descriptions:
http://www.triumphexp.com/phorum/read.php?8,3453
it looks likely like a previous owner tried to by-pass the module be cutting the orange/white and rhe red/white the joining them in a loop.
I also refered to this information about the starter interlock relay:http://www.triumphexp.com/phorum/read.php?8,699485,page=2
this is a link to the wiring diagram that matches my 1973 spitfire 1500, it was
posted the GT6 and spitfire wiring forum
http://www.triumphspitfire.com/images/wiring/75diagram.jpg
The smith's module, I found this wonder of engineering last night. it connects to the start interlock relay, all the seats,seat belts, the light and seatbelt light
here is a link pictures and descriptions:
http://www.triumphexp.com/phorum/read.php?8,3453
it looks likely like a previous owner tried to by-pass the module be cutting the orange/white and rhe red/white the joining them in a loop.
I also refered to this information about the starter interlock relay:http://www.triumphexp.com/phorum/read.php?8,699485,page=2
this is a link to the wiring diagram that matches my 1973 spitfire 1500, it was
posted the GT6 and spitfire wiring forum
http://www.triumphspitfire.com/images/wiring/75diagram.jpg

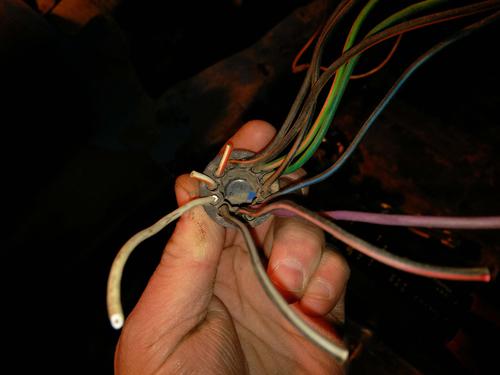

smith's module plug
